Brand Name : | HIGHTOP |
Model Number : | CNMC-H |
Certification : | CE,EPA,ISO,TUV |
Price : | Negotiation |
Payment Terms : | Western Union, MoneyGram, T/T, D/A, D/P, L/C |
Supply Ability : | 40 set per month |
Delivery Time : | 5-14 work days |
CE CNMC-H polyurethane spraying machine 17MPa
Description of CNMC-H polyurethane spraying machine:
The new CNMC-H air driven proportioning unit is of an advanced and compact design. It is specially aimed at the applications of polyurethane foam in place. Its particular configuration facilities easy access to all its components, simplifies the control functions ad significantly reduces the maintenance work.
Features of CNMC-H polyurethane spraying machine:
Product name | Hydraulic CNMC-B polyurethane spraying machine 13.8MPa |
Power source | 230v single phase 230v 3 phase ,400v 3 phase ,50/60HZ |
Heating power | 1000w/15meters |
Whole power | 7.5KW |
Driven mode | Pneumatic |
Air source | 0.5-0.8MPa≥0.9m³ |
Chemical output | 2-12kg/min |
Maximum output pressure | 17MPa |
Max hose support | 90 meters |
Machine size | 800*700*1150mm |

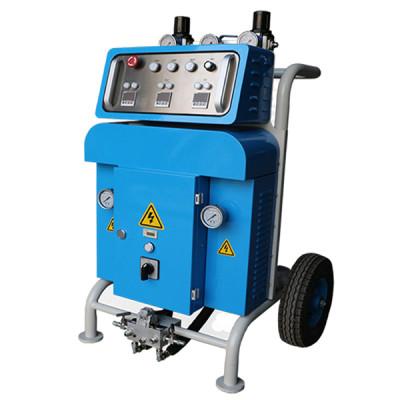

Images of CNMC-H polyurethane spraying machine:
![]() |
